SPITFIRE

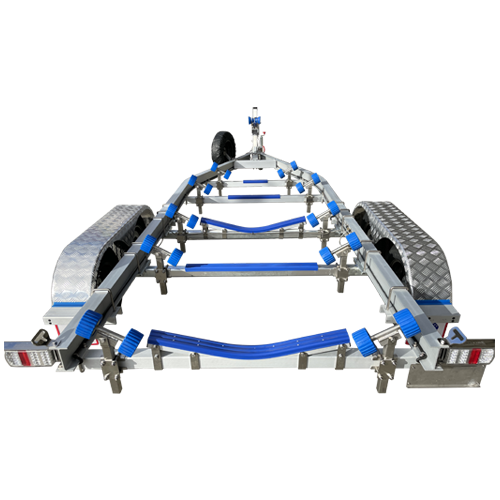

5.8 – 6.4m (19-21ft) Aluminium Boat Trailer | 2000kg (ATM) 700D

From $11,479.00

Current ETA: 1-2 weeks

Finance me for: 71 p/w
over 40 months*

Spitfire EOFY Deal

Tailored for boats between 5.8 to 6.4 meters, the Spitfire 700D offers a blend of strength and convenience, supporting weights up to 2000kg. Built with precision using the sturdy 6061-grade anodised aluminium, this trailer features marine-grade Stainless Steel 316 fittings for maximum durability. The single axle torsion suspension ensures smooth travels, while the DEEMAX disc brake on the same axle guarantees safety. Equipped with versatile submersible LED lighting, the 700D also boasts a 14″ machined alloy rim design. Additional highlights include its rolled aluminium guards, a robust 750kg machined stainless steel winch, and a galvanised 8″ jockey wheel, ensuring this model remains a top choice for reliability and style.

Pickup & Rego

Options

Build Time

5.8 – 6.4m (19-21ft) Aluminium Boat Trailer | 2000kg (ATM) 700DFrom $11,479.00
Pickup & Rego
Pickup Location -
Registration -
Options
Calipers -
Rotors -
Drive on Guides (1-3) -
Spare Wheel -
Build Time
Build Time -
Subtotal

Product total

Options total

Grand total

Payment Options

*Note: Please call (07) 4410 9797 or email [email protected] to confirm stock availability before ordering. Placing a deposit confirms your order and allows us to confirm your delivery date. Adding options, and customisations will take time and will be confirmed at the time of your order. You can either place a deposit or pay for your order in full. Please note – there is a 5% cancellation fee if a refund is requested.

*FREE Delivery is only available in Townsville, Brisbane, Cairns, Rockhampton, and Mackay.

Specifications:

MAKE: Spitfire
TRAILER MODEL: 700-2000
CHASSIS RATING: 3500kg
ATM: 2000kg
TARE: 450kg
DESIRABLE MIN TOWBALL WEIGHT: 120kg
BOAT, MOTOR, FUEL WEIGHT ALLOWED: 1550kg
TRAILER CHASSIS LENGTH: 7000mm
TRAILER WIDTH: 2495mm
WIDTH BETWEEN GUARDS: 2010mm
KEEL ABOVE GROUND LEVEL – TRAILER LOADED: 420kg
ENGINEERING DESIGN ASSURANCE & COMPLIANCE: FEA / MVA1989-VSB1
ALUMINIUM MATERIAL GRADE / STRENGTH / PROTECTION: 6061 / T6 / Anodised
FIXTURES & FITTINGS, POSTS, BRACKETS, ETC: Marine Stainless Steel 316
AXELS / SUSPENSION TYPE / CORROSION PROTECTION: Dual Axle / Torsion / Dacromet
TRAILER CONSTRUCTION: Bolted / No chassis welds
LIGHTS: Submersible LED, main + side (Sealed unit)
LIGHT CONNECTORS (Other types available): 7-pin – Flat, Round or Big round on request
WINCH: Machined S/Steel 316 – 750kg
TRAILER CONFIGURATION: Suits Winch-on
BRAKE TYPE: Mechanical / Single Axle DEEMAX Disc
ELECTRIC OVER HYDRAULIC BRAKE ACTUATOR: Not required
BRAKE MATERIAL OPTIONS FOR ROTORS AND CALIPERS: Steel & optional full Stainless Steel
WHEEL RIMS / TYPE: 14″ Alloy (Machined) / 185R14C
GUARDS: Rolled Aluminium
JOCKEY WHEEL: 8″ – Galvanised

Keel Raising can be done to achieve extra height (not included) Total 7 Cross members including the 2 axles
